Multi Function Stacking Transfer Belt Conveyor B650 Bulk Ship Carrier Loading Unloading

Name: Multi Function Stacking Transfer Belt Conveyor B650 Bulk Ship Carrier Loading Unloading
Brand: RUNWELL
Price: 20000 USD

Brand Name : RUNWELL

Model Number : B500,B650,B800,B1000,B1200, B1400,B1600, or basing on client's requirement

Certification : CE,ISO certificates

Place of Origin : Shanghai, China

MOQ : 1 set

Price : USD20000-500000

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 20 working days

Packaging Details : Container, Nude Packs, in Bulk; Export Packing Standard

capacity : 50-3000 tons per hour

Power(w) : 7.5kW - 500kW based on the width and length

Voltage : 380V, 50Hz; 440V,60Hz or request by clients

Warranty : 1 year from productioni time

Name : TDII Type and TD75 type

Application : cement,crusher plant,mining area, loading and unloading,shipping system

Speed : 1-2M/s

Belt width : 500,650,800,1200,1400,1600mm, or Customized

Contact Now

Big inclination upwards transport belt conveyor, power belt conveyor, long conveyor belt manufacturer

Description: Belt Conveyor

Product Introduction
The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.
Multi Function Stacking Transfer Belt Conveyor B650 Bulk Ship Carrier Loading Unloading

Multi Function Stacking Transfer Belt Conveyor B650 Bulk Ship Carrier Loading Unloading

Features:

Product advantages:
1. It is one of the cheapest ways to move material long distances.
2. There is virtually no degradation of your product caused by conveying.
3. The conveyor can have changes in elevation.
4. The material can be visible on the belt while being conveyed.
5. Belts can be loaded virtually any place along the belt.
6. The belt can have "trippers" to unload the belt almost any place.

Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute

Technical Parameters

Belt Width (mm)	Belt Length (m) / Power (kw)			Belt Speed (m/s)	Capacity (t/h)
400	<12/1.5	12-20/2.2	20-25/3	0.8-2.0	40 -80
500	<12/3	12-30/4	20-30/5.5	0.8-2.0	78-191
650	<12/4	12-20/5.5	20-30/7.5	0.8-2.0	131-323
800	<10/4	10-15/5.5	15-25/7.5	1.0-2.0	278-546
1000	<10/5.5	10-20/7.5	20-25/11	1.0-2.0	435-853
1200	<10/7.5	10-20/11	20-25/15	1.0-2.0	655-1284

Multi Function Stacking Transfer Belt Conveyor B650 Bulk Ship Carrier Loading Unloading

Site Photo

Product Advantages

Professional engineer team:

In the past 20 years, we have rich experience in

providing long distance belt conveyor products and

services to more than 50 countries and regions;

Customized belt conveyor solutions can meet the

special needs of bulk material handling such as

large capacity, long distance, large inclination and

turning, and solutions such as tubular conveyor and

mobile belt conveyor can be provided;

Professionally solutions of special materials with high

humidity and high viscosity;

Comply with different standards such as CEMA, DIN,

JIS, as, SABS, etc;

Low energy consumption and low noise, and meets the

local environmental protection requirements;

Integrated intelligent control technology can realize the

centralized control of the long distance belt conveyor

system and production equipment.

Reliable quality:

International top brands conveyor drive equipment, bearings and belts are adopted, which greatly improves the service life of the belt conveyor system.

Perfect after-sales service:

Provide whole process installation guidance and

commissioning services to help customers reduce

operation and maintenance costs of the belt conveyor

system.

Application And Project Cases

Belt Conveyor System of Vietnam

FHS Steel Plant

Tubular Belt Conveyor of Jinping

Hydropower Station

Belt Conveyor System of

Thailand Power Plant

Belt Conveyor System of HBIS

Group Iron Mine

Belt Conveyor System of UHV

Power Transmission in China

Belt Conveyor System of Tianjin

YongLi Chemical Industry

Description of Long distance belt conveyor

long distance belt conveyor can be used to continuously convey bulk materials through long distance, with large inclined angles and in complex terrain,every single conveyor can be designed, manufactured and installed according to clients’ requirements.

Features and advantage

incressed tensile stength of modern conveyor belts allow for the construction of long distance curved conveyors of up to 30 kilometers and for belt widlths of up to 500-2600mm.compared to the standard belt conveyor,curved conveyors may exhibit serval advancements such as:

1.Decreased material transportation costs;
2.Decreased in fixed assets cost(railway or highway);
3.Decreased drive devices and transfer points.
4.simple structure, low operation cost, low working noise, running safely and stably, clean and highly efficient.
5.Conveyor systems are the logical connection between the phases of mining, processing, and storage.

application

Long distance belt conveyoris widely used in ports,terminals,wharf, power plants,steel plant,chemical plant,cement factories,metallurgy,coal mining and other industries.Bulk material such as coal,lime stone,iron ore and clean coal,etc.

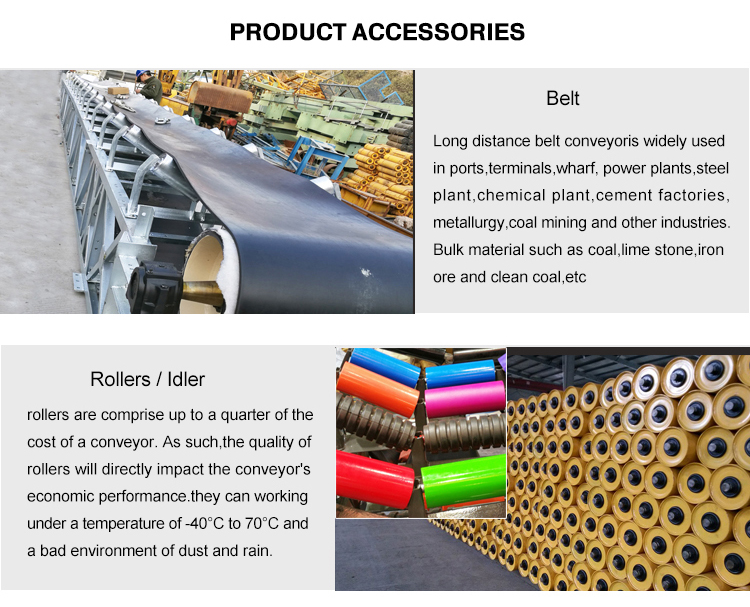

Detailed Images

Packing And Delivery

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
